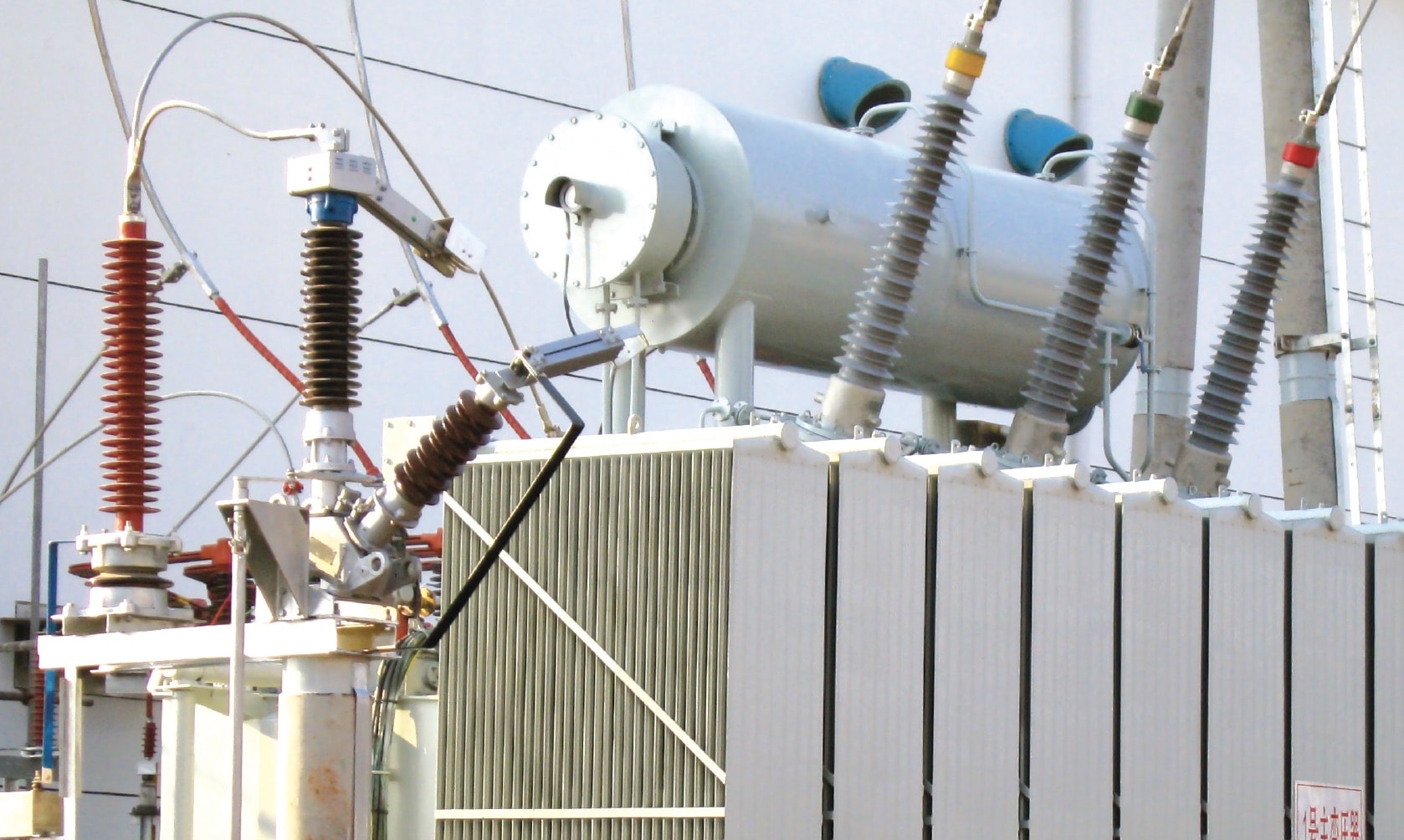

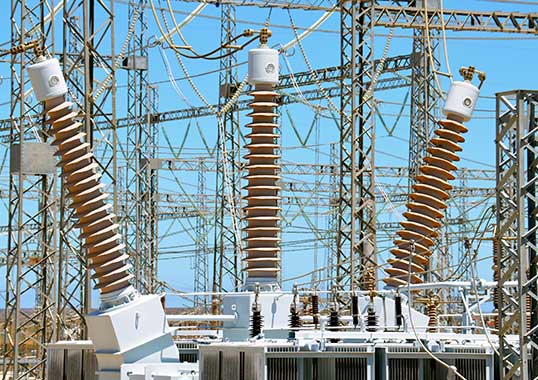

Power transformer hv bushing. High voltage bushings are usually equipped with a tap for test measurements. High voltage bushings on a utility transformer at an electrical substation. In electric power a bushing is a hollow electrical insulator that allows an electrical conductor to pass safely through a conducting barrier such as the case of a transformer or circuit breaker without making electrical contact with it. The bushings connect the windings of the transformer to the supply line and insulate the feed through conductor from the transformer main tank.

Webster wilkinson offer a complete range of bushings which are robustly built using resin insulation and designed for use on power transformers operating at lv mv hv electrical voltages. We are a proud member of. Bushings are critical components in all electrical networks as their chief role is to bring current at high voltage through a grounded barrier. The conductor is embedded into the resin and sealed against oil ingress.

The types of bushing are as follows porcelain insulator bushing used upto 11 kv. High voltage transformer bushings are used to insulate the incoming or outgoing conductor into or out of a grounded barrier in power transformer case is the transformer main tank. One of the main benefits of using resin bushings instead of porcelain bushings is the design. The bushing of power transformer is a type of porcelain or ebonite post insulator put on the top or side of the transformer tank through which connections are made to the external circuit.

Our monitoring sensors allow our customers to predict when their bushings are going to fail preventing bushing and transformer failures therefore saving money and keeping the grid more stable. Transformer with 420kv rip bushings photo credit. Hitachi abb power grids offers a broad range of bushings for transformers reactors switchgear and traction and wall applications in both oil impregnated paper oip and resin impregnated paper rip technologies. Power hv 403 6th avenue.

Plug in bushings are normally used in an oil air arrangement by their definition this range of bushings is designed to allow off load disconnection of cables allowing the quicker replacement of transformers or switchgear. Webster wilkinson produce plug in bushings in accordance with the requirements of en 50180 standards. The bushing nameplate should list the tap capacitance and power factor of the c2 insulation as measured from the tap to the grounded flange. The most powerful hvdc transformer in the world has recently successfully passed its test phase in nuremberg germany.
